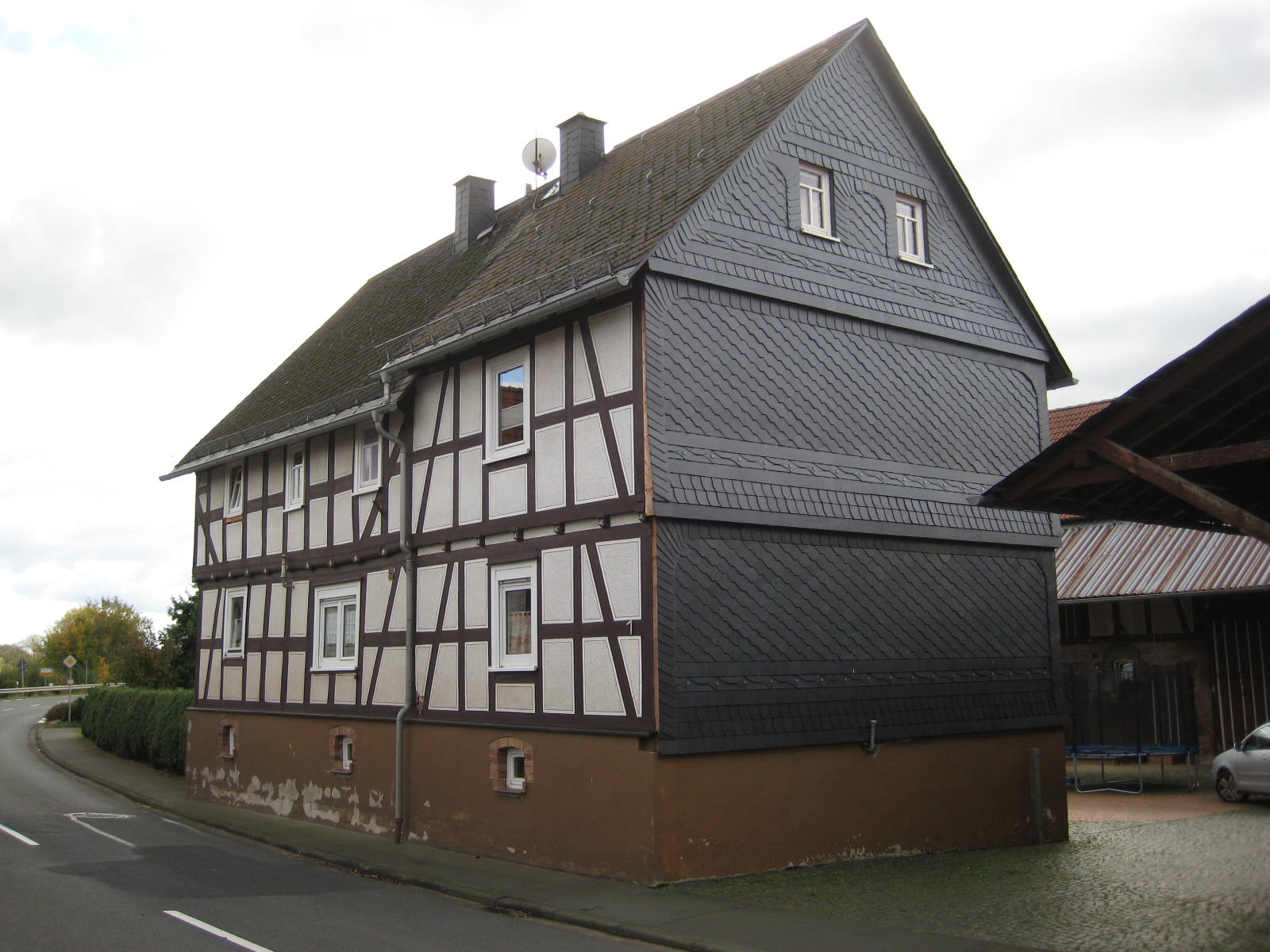

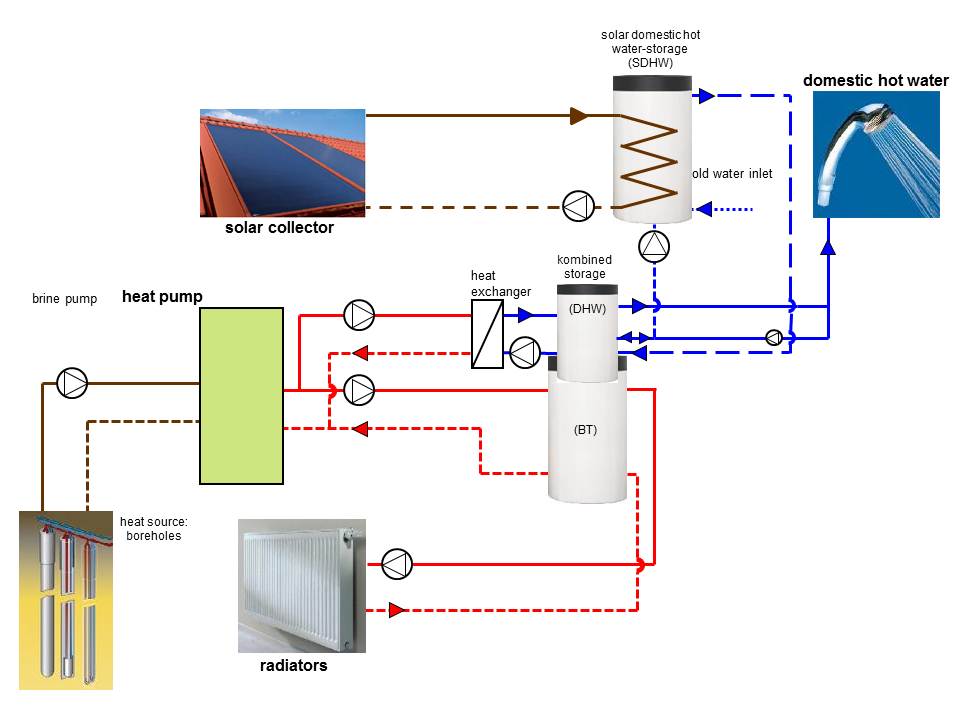

heated area: 200 m² space heating consumption: ca 100 kWh/(m²a) number of occupants: 5 Heating System thermal power (B0/W35): 18,6 kW* heat source: ground source 3 boreholes (total length 339 m) heat distribution: radiators *in accordance with EN 14511 |
to see current values please click on the picture

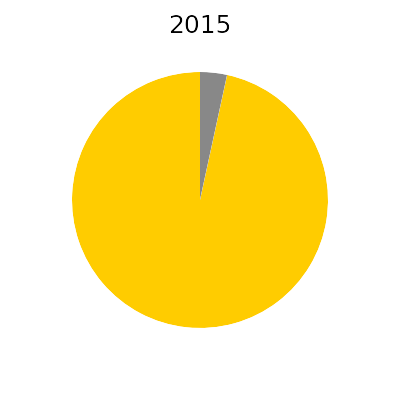

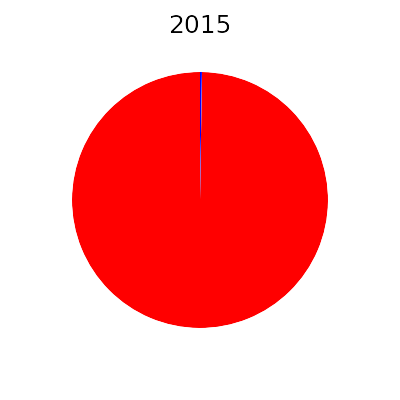

energy balances and seasonal performance factors SPF:
 compressor
 brine pump
 elec. backup
 space heating
 DHW

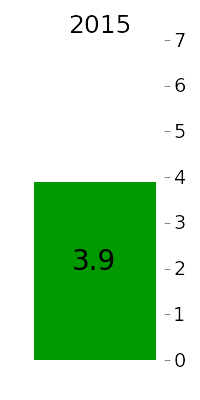

 SPF
to see monthly average values please click on the diagrams average daily temperatures:
primary circuit space heating domestic hot water
|
|
