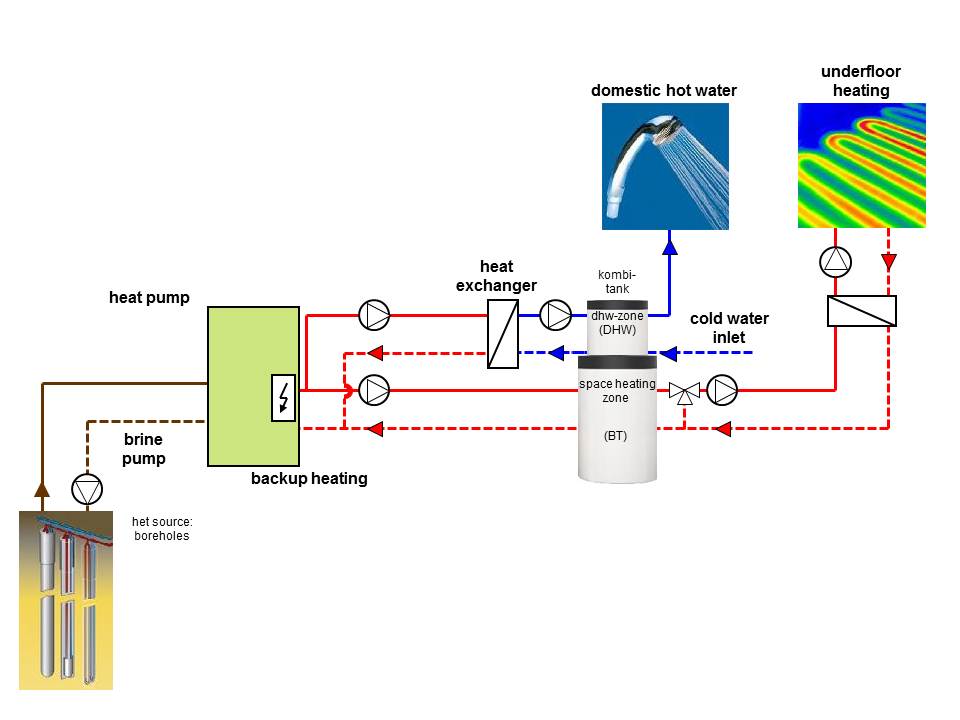

heated area: 130 m² space heating consumption: ca. 100 kWh/m²a number of occupants: 3 Heating System thermal power (B0/W35): 9 kW* heat source: ground source borehole (length 130 m) heat distribution: floor heating *in accordance with EN 14511 |
to see current values please click on the picture

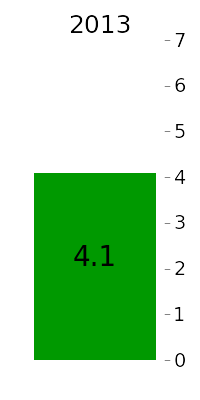

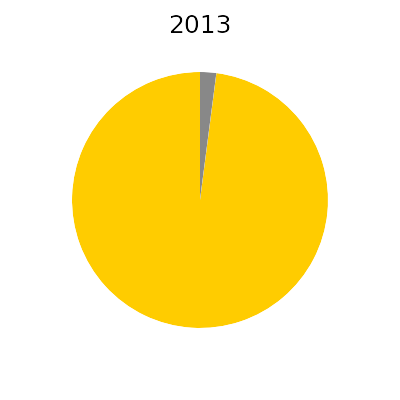

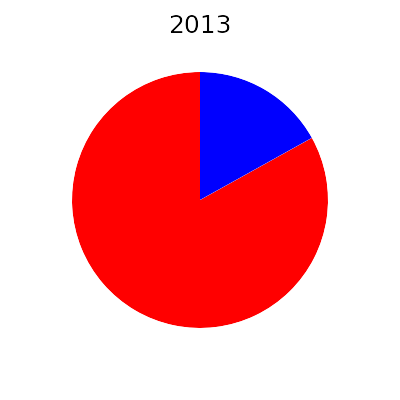

energy balances and seasonal performance factors SPF:
 heat pump (compressor & controller)
 brine pump
 elec. backup space heating
 DHW
 SPF
to see monthly average values please click on the diagrams average daily temperatures:
primary circuit space heating domestic hot water
|
|
