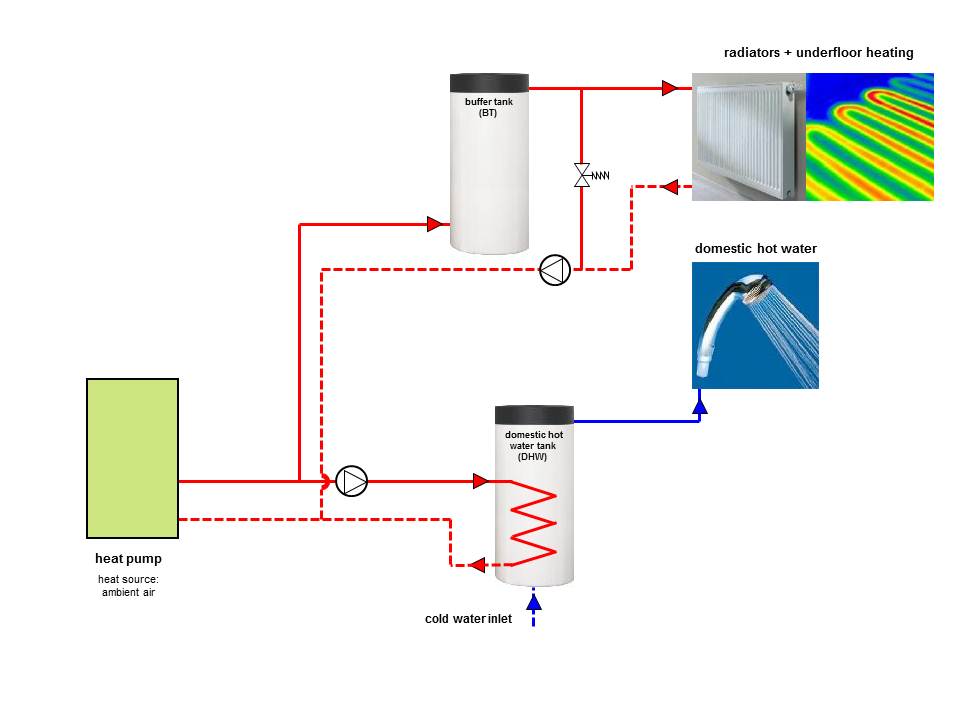

heated area: 101 m² heating load: 5,1 kW* number of occupants: 1 heating system thermal power (A2/W35): 7,5 kW** heat source: ambient air heat distribution: radiators and floor heating *in accordance with EN 12831 **in accordance with EN 14511 |
to see current values please click on the picture

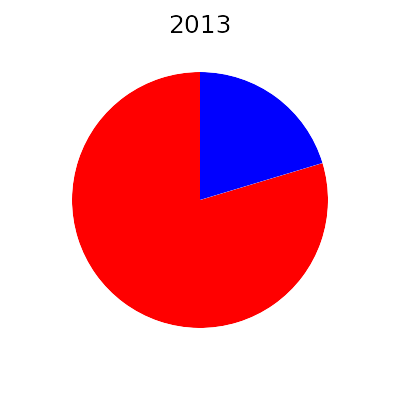

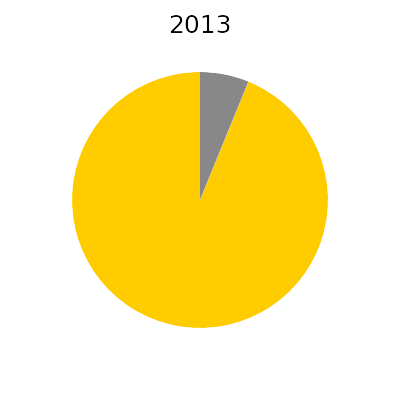

energy balances and seasonal performance factors SPF:
 heat pump (compressor & controller)
 fan space heating
 DHW

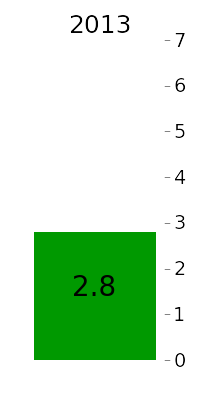

 SPF
to see monthly average values please click on the diagrams average daily temperatures:
outside temperature space heating domestic hot water DHW
|
|
